About B7 Backup Camera System

Are you tired of struggling to park your car or worried about backing up safely? Look no further than the B7 backup camera system. This innovative device is designed to provide you with a clear view of what's behind your vehicle, making parking and reversing easier and safer than ever before.

What is B7 Backup Camera System?

The B7 backup camera system is a device that is installed on the rear of your vehicle, typically on the license plate. It consists of a camera, a monitor, and a set of wires that connect the two. The camera captures a wide-angle view of the area behind your vehicle, while the monitor displays the live feed from the camera, allowing you to see what's happening behind you in real-time.

How Does it Work?

The B7 backup camera system works by using a combination of advanced technology and simple wiring. The camera is connected to the reverse lights of your vehicle, which means that it automatically turns on when you put your car in reverse. This ensures that you always have a clear view of what's behind you, even in low-light conditions.

The camera captures the live feed and sends it to the monitor, which is typically mounted on your dashboard or rearview mirror. The monitor displays the feed in real-time, allowing you to see any obstacles, pedestrians, or other vehicles that may be in your path. This gives you the information you need to park or reverse safely and confidently.

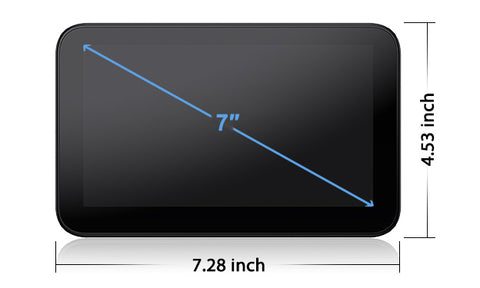

Q: What are the monnitor dimentions?

A: 7.28(L)* 4.53 (H)* 1.5(D)



Q: Are monitor and camera battery powered?

A: No, they are wired for power.



Q: How can I do if I do not have smooth areas to affix a suction cup?

A: You can use sticky adhesive or VHB 3M adhesive double-sided circle to help it mount.
Or put a small piece of sturdy velcro on the bottom of suction cup and on my dash.



Q: How to save the settings?

A: After setting up, you need to press the power button to turn it off, and then turn it on a few seconds later, and the settings will be saved.



Q: Where can I download the B7 manual?

A: Navigate to the "Support" section of our websited>Click on the "Manuals Download" tab>Select B7 and click on the "Manual Download" button



Q:What can I do if the screen fell apart?

A:Please contact us at sales@uszeroxclub.com with your order number and the picture of the camera, we will send a replacement to you. To save your time, you do not need to send back the original item.



Q: Would the B7 backup camera be compatible with car daul radio?

A: No, it can't hook into radio, the B7 backup camera can plug into cigarette lighter and turn on and off manually or hard wire into reverse lights for automatic power up



Q: Is the B7 camera a wireless system?

A: No, the B7 backup camera is a wired system. But easy to hook up and there is no interference.

You can click this link to learn about the Installation: How to install ZEROXCLUB B7 wired system



Q: Can I turn off the camera's LEDs?

A: No, the LEDs will come on when the camera was triggered with the backup lights. It’s helpful to get more clear image in dark condition. If you don't want the LEDs, you can simply put some black tape on the LED lights.



Q: Is the B7 camera universal fit?

A: It work for vehicle under 30ft. You just have to have a centered back license plate that the camera attaches to, and access to your reverse light as you will splice the camera connections to black to negative and red to positive on the reverse lights or plug into cigarette lighter and turn on and off manually.



Q: How long are the wires inside the package?

A: The power cord is 10ft and the extension cable is 33ft. So the B7 system is suitable for cars up to 30ft.



Q: Can I add an extension cord?

A: Yes,if you thought that the cable supplied with the B7 is not long enough, you can add an extension cable, please make sure that the connectors of the extension cable are the same.

  4-pin extension cord

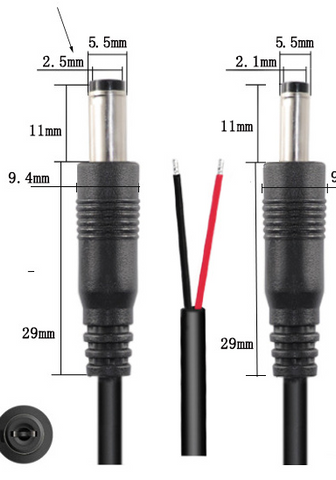

 DC power cord extension



Q: Can I buy a longer power cable?

A: Our power cords are all the same length (3m/9.84ft).
If you want to extend the power cord, you can add a DC power cord extension.



Q: Is B7 an RCA connection?

A: No,the B7 camera is not an RCA connection and is not compatible with the head unit, it can only be used with the 7" IPS screen that comes with the B7 system.



Q: Does the B7 system come with a warranty?

A: Yes, the warranty period is 18 months from the date of purchase. Our products also have lifetime technical support.



Q:How to adjust the parking guidelines?

A: The b7 system allows adjustment of the parking guidelines for width, up and down movement and left and right movement.
Step:Power on the monitor, press the parking guideline button.

  • Then press the menu button. An "H" appears in the upper left corner, press the "+" or "-" button multiple times to make left and right movement adjustments.
  • Press the menu button again. An "V" appears in the upper left corner, press the "+" or "-" button multiple times to make up and down movement adjustments.
  • Press the menu button the third times. An "W" appears in the upper left corner, press the "+" or "-" button multiple times to make width adjustments.



Q: What can I do if the button don't work?

A:Please contact us at sales@uszeroxclub.com with your order number and the picture/video of the camera, we will send a replacement to you. To save your time, you do not need to send back the original item.



Q: What can I do if it has lines/waves on the screen?

A: 1. Please test with a cigarette lighter to see if you have the same problem.
2. Vehicle power interference. Test the system with another vehicle or other available 12V battery to see if it have the same problem.
3. Check the sparkplug wires you suppose.
4. If you have a 12V DC power adapter filter rectifier, you can use it to try to see if it solves the problem.
5. If you still have the same problem, please contact us at
sales@uszeroxclub.com with your order number and the picture of the camera.



Don't let parking and reversing be a source of stress and anxiety. Invest in a 7inch wired license plate backup camera system and enjoy the peace of mind that comes with knowing you have a clear view of what's behind you at all times. If you have any questions not mentioned above, just feel free to email us at sales@uszeroxclub.com. We're always there for you!
